Bosch LC1-WM06E8 Specs
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
Loudspeakers, Pro Audio
Compare

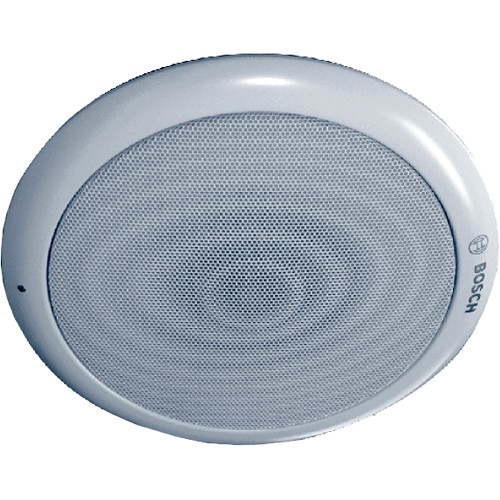

LC1-WM06E8 – Ceiling loudspeaker, 6W, metal, 4″
Availability:
10 in stock
2,845 EGP
10 in stock
LC1-WM06E8 Ceiling loudspeaker, 6 W, integrated circular metal grille, 4-inch driver, without flush ceiling-mounting accessory, EN54-24 certified, white RAL 9010.
Key Features
- Excellent speech and music reproduction
- Easy installation with one grille size and one complete set of accessories
- Choice of different ceiling mounting methods
- Optional Pilot Tone indication
- EN 54‑24, UL2043, UL1480 certified
Numerous ceiling situations may be utilized with the Bosch LC1-WM06E8 Loudspeaker series. They deliver high-quality music and voice for indoor public address systems. There are five loudspeakers in the range, each with a unique opening angle, input power, and sound reproduction. It has two very effective 12W and 24W coaxial loudspeaker drivers in addition to three 6W single cone loudspeakers with adjustable opening angles.
They may all be used with the same mounting accessories and have the same grille size. When fitted with the LC1-MFD enclosure, the Bosch LC1-WM06E8 Ceiling Loudspeakers are appropriate for use in air-handling rooms.
Check out LC1 Ceiling loudspeaker Price.
The loudspeaker frame comes with a light conductor that is standard to display the pilot-tone status and space for attaching an optional pilot-tone indicator board or WLS board. They may all be used with the same mounting accessories and have the same grille size.
When fitted with the LC1-MFD enclosure, the LC1 Ceiling loudspeaker metal is appropriate for use in air-handling rooms. The loudspeaker frame comes with a light conductor that is standard to display the pilot-tone status and space for attaching an optional pilot-tone indicator board or WLS board.
Buy LC1 Ceiling loudspeaker, 6W from our store now!
Based on 0 reviews
Be the first to review “LC1-WM06E8 – Ceiling loudspeaker, 6W, metal, 4″”
Related products
-
Pro Audio, Loudspeakers
LC2-PC30G6-8 – Ceiling loudspeaker, 30W, 8″ Pair
The LC2-PC30G6-8 Ceiling loudspeaker is a 8‑inch two‑way Premium‑sound Ceiling Loudspeaker which provides; wide dispersion, high efficiency, high maximum output, ease‑of‑installation, and wide‑range reproduction of music and voice.
Key Features
- 8‑inch coaxial two‑way
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839‑8 and EN 60849 compliant
It consists of a baffle assembly, grille, back‑can enclosure, 8‑inch coax two‑way loudspeaker and internal output‑power matching transformer. The loudspeaker features a waveguide coupled with a titanium coated dome tweeter.
The rear enclosure provides an optimum internal volume for extended low frequency performance. The loudspeaker utilizes a second order crossover network at 3.3 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
The LC2-PC30G6-8 Ceiling loudspeaker can be installed optionally with the LC2‑PC60G6‑10 ceiling subwoofer to enhance the low frequency reproduction down to 45 Hz.
Mounting
The LC2-PC30G6-8 Ceiling loudspeaker is secured in ceilings using four integral toggle anchors, and has been designed to work together in a wide range of different ceiling constructions.
A tile bridge / C‑ring is included for safe suspension in a drop ceiling that uses mineral wool, or other fiber‑based ceiling tiles from 4 to 25 mm (0.16 to 1.0 in.) thick. A circular template for marking a 272 mm (10.75 in.) diameter hole is included with the loudspeaker.
Check out LC2 Ceiling loudspeaker Price.
Power setting
The LC2 Ceiling loudspeaker Pair has a three‑way emergency compliant ceramic terminal block with screw connections (including earth) suitable for loop‑through wiring.
Four 100 V, and five 70 V, primary taps are provided on the matching transformer to allow selection of nominal full‑power, half‑power, quarter‑power, eighth‑power radiation (in 3 dB steps) and eight ohm. Selection is done via a convenient switch on the front baffle.
Buy LC2 Ceiling loudspeaker, 30W from OmniSignals now!
SKU: #0015 -
Pro Audio, Loudspeakers
LC2-PC60G6-8H – Ceiling loudspeaker, 60W, 8″, high
The LC2-PC60G6-8H Ceiling loudspeaker with an 8‑inch two‑way Premium‑sound. It provides wide dispersion, high efficiency, high maximum output, ease‑of‑installation, innovative dual waveguide that provides directivity control to 1 kHz and wide‑range reproduction of music and voice.
Key Features
- 8‑inch coaxial two‑way with dual integrated waveguides
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839‑8 and EN 60849 compliant
It consists of a baffle/waveguide assembly, grille, back‑can enclosure, 8‑inch coax two‑way loudspeaker and internal output‑power matching transformer. The loudspeaker features a waveguide coupled with a titanium coated dome tweeter.
It provides much better music fidelity and speech intelligibility in spaces with high ceiling heights than typical flush units are capable of. The rear enclosure provides an optimum internal volume for extended low frequency performance.
The LC2-PC60G6-8H Ceiling loudspeaker utilizes a second order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
The loudspeaker can be installed optionally with the LC2‑PC60G6‑10 ceiling subwoofer to enhance the low frequency reproduction down to 45 Hz.
Installing
Four inbuilt toggle anchors are used to fasten the loudspeaker to ceilings, and it is made to function with a variety of ceiling configurations.
For safe suspension in a drop ceiling with mineral wool or other fiber-based ceiling tiles ranging in thickness from 4 to 25 mm (0.16 to 1.0 in.), a tile bridge or C-ring is incorporated.
With the LC2-PC60G6-8H Ceiling loudspeaker comes a circular template for marking a hole with a diameter of 322 mm (12.625 in.).
Check out LC2 Ceiling loudspeaker Price.
Power configuration
The LC2 Ceiling loudspeaker high contains a ceramic terminal block that is three-way emergency compatible and has screw connections (including earth) that may be used with loop-through wire.
The matching transformer has three 100 V and four 70 V main taps that allow you to pick nominal full power, half power, quarter power, eighth power radiation (in three dB increments), and eight ohm. Convenient switch on the front baffle is used for selection.
Buy LC2 Ceiling loudspeaker, 60W from OmniSignals now!
SKU: #0016 -
Pro Audio, Power Amplifiers
Bosch PLE-2MA120-EU – Priority mixer amplifier, 2-zone, 120W
Introducing the Bosch PLE-2MA120 Plena Mixer Amplifier, a sophisticated solution designed for versatile 2-zone operations and high-output power needs in background audio PA and commercial audio installations. With its robust 120 watts of power, this amplifier is engineered to deliver crisp, clear sound across various settings, including retail stores, commercial offices, and halls.
Key Features:
- Versatile Zone Operations: Equipped with two zones, each featuring Euro-style pluggable screw terminal connectors for 70V, 25V, and 4 Ohms taps, allowing for flexible speaker configurations.
- Comprehensive Input Options: The PLE-2MA120 offers six microphone/line inputs alongside three music source inputs, ensuring compatibility with a wide range of audio sources. It also includes a 100V telephone and a call station input with priority & VOX for seamless integration into existing PA systems.
- Enhanced Voice Clarity: With a dedicated announcement channel, voice-activated emergency override, and built-in 2-tone chime (expandable to 7 more with an optional call station), this amplifier ensures clear communication in critical situations.
- Superior Sound Quality: The frequency response ranges from 50 Hz to 20 kHz, providing a broad spectrum for audio playback. It also boasts a dynamic range of 100 dB and low distortion levels (< 1% at rated power), ensuring high-quality sound reproduction.
- Advanced Signal Processing: Includes separate tone controls for microphones and music sources, bass and treble adjustability of ±12 dB, and a high-pass filter set at 315 Hz, offering precise sound customization.
- Reliable Power Supply: The unit can operate on AC (115 to 230 VAC) and DC (24 VDC) power sources, with a built-in 24V charger for backup power, ensuring uninterrupted operation.
- User-Friendly Interface: Designed for ease of use, the PLE-2MA120 features straightforward controls, making it accessible for all skill levels.
- Durable and Practical Design: With dimensions of 16.9 x 3.9 x 10.6 inches and weighing 23.1 lb, this amplifier is built for durability without compromising on practicality. The unit’s design ensures it integrates seamlessly into a variety of settings.
The Bosch PLE-2MA120 Plena Mixer Amplifier stands out as a cost-effective, ideal solution for enhancing audio systems in commercial environments. Its powerful performance, flexible connectivity, and user-friendly features make it a top choice for professionals seeking reliability and quality in audio installations.
SKU: #0033 -
Pro Audio, Loudspeakers
LC3-UC06E – Ceiling loudspeaker, 6W, spring arms
The LC3-UC06E Ceiling loudspeaker is a general purpose, cost-effective 6 W ceiling loudspeaker, suitable for 100 V connection with power tapping of: 6, 3, 1.5 and 0.75 Watt.
Key Features
- Suitable for speech and music reproduction
- Lightweight ABS material
- Easy to install
- Unobtrusive design
- EN 54‑24 certified
The optional back‑box LC3‑CBB fully protects the loudspeaker from dust and dripping water from above, according IP21C. The LC3 Ceiling loudspeaker spring arms, frame, grill and back‑box are manufactured from self‑extinguishing ABS according to UL 94V0.
Check out LC3 Ceiling loudspeaker Price.
Installation and Setup
With built-in spring arms that firmly hold the LC3-UC06E Ceiling loudspeaker in its cut-out, installation is simple. Ceilings ranging in thickness from 5 to 25 mm are compatible. Additionally, a template for precisely outlining the cut-out in ceiling panels is given.
The LC3-UC06E Ceiling loudspeaker is equipped with built-in protection to make sure that damage to it during a fire doesn’t cause the circuit to which it is connected to fail. System integrity is preserved in this way, guaranteeing that people can still hear announcements via loudspeakers in other locations.
The loudspeaker is equipped with heat-resistant high temperature wire, a thermal fuse, and a ceramic screw-terminal connecting block. holes (11 mm) for two cable glands (20.5 mm) and two rubber grommets (standard provided).
Four primary taps for 100 V are provided on the matching transformer to allow selection of nominal full‑power, half‑power, quarter‑power and one‑eighth‑power.
The optional back‑box (LC3‑CBB) protects the rear of the loudspeaker from dust, falling objects, makes the unit vermin proof and prevents sound traveling via the ceiling cavity to adjacent areas.
The back‑box is assembled with the loudspeaker by means of a snap‑in construction and has knock‑out holes (11 mm) for two rubber grommets (standard supplied) and for two cable glands (20.5 mm).
Buy LC3 Ceiling loudspeaker, 6W from OmniSignals now!
SKU: #0022
