Bosch LC1-UM06E8 Specs
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
Loudspeakers, Pro Audio
Compare

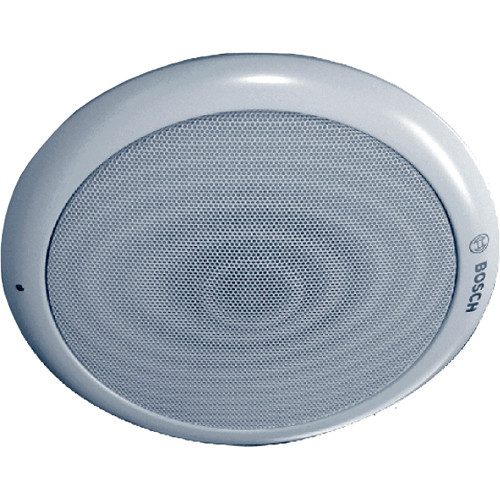

LC1-UM06E8 – Ceiling loudspeaker, 6W, metal
Availability:
10 in stock
2,555 EGP
10 in stock
The LC1-UM06E8 Ceiling loudspeaker range can be used for a wide variety of ceiling environments. They provide excellent speech and music in indoor public address applications. The range offers a choice of five loudspeakers distinguished by input power, opening angle and sound reproduction.
Key Features
- Excellent speech and music reproduction
- Easy installation with one grille size and one complete set of accessories
- Choice of different ceiling mounting methods
- Optional Pilot Tone indication
- EN 54‑24, UL2043, UL1480 certified
Protection
The LC1-UM06E8 Ceiling loudspeaker has built-in protection to ensure that fire damage to the loudspeakers does not cause failure of the connected circuit. In this way system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation. The loudspeakers can also be used in combination with a metal fire-dome to increase protection of the cable termination.
Check out the LC1 ceiling loudspeaker price.
Connections
The loudspeaker has a ceramic screw-terminal connection block, thermal fuse and heat-resistant, high-temperature wiring.
Buy LC1 ceiling loudspeaker, 6W now!
More Information
Ceiling loudspeaker, 6 W, integrated circular metal grille, 6-inch driver, without flush ceiling-mounting accessory, EN54-24 certified, white RAL 9010.
The loudspeaker can be installed with the LC1-MFD or LC1-MFDS enclosure and are suitable for use in air-handling spaces. The loudspeaker frame includes provision for mounting the optional monitoring board PRA-EOL and DC-blocking board PM1-LISD inside the enclosure.
See our LC1 ceiling loudspeaker metal.
Based on 0 reviews
Be the first to review “LC1-UM06E8 – Ceiling loudspeaker, 6W, metal”
Related products
-
Pro Audio, Loudspeakers
LC5-WC06E4 – Ceiling loudspeaker, 6W, ABS, 2″
The LC5-WC06E4 Ceiling loudspeaker is an extreme compact ceiling loudspeaker, suitable for speech and background music reproduction.
Key Features
- Suitable for speech and music reproduction
- Extreme compact size
- Suitable for use in humidity-, chlorine- and salty environments
- Selectable 70 V ,100 V and 8 Ohm input
- EN 54‑24 certified
Design
The design of the front grille perfectly matches with current available recessed luminaires, integrating light and sound.
The optional back‑box LC5‑CBB fully protects the rear of the loudspeaker from dust and dripping water from above, making the combination IP 44 protected.
The loudspeaker frame, grille and back‑box are manufactured from self‑extinguishing ABS according to UL 94 V 0.
Usage
This LC5-WC06E4 Ceiling loudspeaker is suitable for use in low ceiling applications with low noise level. The small driver used in the unit stands for delivering good sound quality from a small sized unit and provides a wide opening angle for the important frequency octaves.
Fewer loudspeakers are needed to cover a given area, and the noticeable “fading” that occurs as a listener walks from one loudspeaker to another area is eliminated.
The LC5 Ceiling loudspeaker ABS, 2 (with an assembled back‑box) is suitable for use in humidity-, chlorine- and salty environments.
See our LC5 Ceiling loudspeaker Price.
Installation
Installation is easy with two integral leaf springs that securely hold the loudspeaker in its cut‑out. The integral leaf springs can be adjusted in three positions to accommodate ceiling thicknesses from 5 mm to 25 mm.
The size of the ceiling cut‑out opening is standardized on available 3” (76.2 mm) cutting hole saws. No tool required for fitting the loudspeaker into the ceiling cut‑out.
The loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected.
In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation.
The LC5-WC06E4 Ceiling loudspeaker has ceramic screw‑terminal connection blocks, thermal fuse and heat-resistant high temperature wiring.
Buy LC5 Ceiling loudspeaker, 6W from OmniSignals now!
SKU: #0018 -
Pro Audio, Power Amplifiers
Bosch PLE-1MA030-EU – Priority mixer amplifier, 30W
Elevate your audio experience with the Bosch PLE-1MA030 Plena Mixer Amplifier, a powerhouse of versatility designed for background audio PA and commercial audio installations. This compact yet robust amplifier delivers 30 watts of power, ensuring your message is heard loud and clear in retail stores, commercial offices, halls, and beyond. Its straightforward interface makes operation a breeze for users of all skill levels, allowing you to focus on delivering your content seamlessly.
Key Features and Benefits
- Versatile Inputs: With four microphone/line inputs and three additional music source inputs, this amplifier is built to handle a variety of audio sources, making it perfect for any setting that requires both speech and background music.
- Priority Functions: Equipped with 100V and telephone input options, the PLE-1MA030 ensures priority and VOX override, meaning important announcements can cut through any background music or other audio, ensuring critical messages are heard.
- Intuitive Operation: This mixer amplifier features an announcement-only output and a 3-wire volume override for easy control during paging applications. The voice-activated emergency override and 2-tone chime add layers of functionality for comprehensive audio management.
- Tone Controls: Unique and easy-to-use intuitive tone controls with 2-band EQ (Bass: ±12 dB, Treble: ±12 dB) allow for fine-tuning of the audio output, ensuring your broadcasts are clear and pleasant to listen to.
Advanced Design and Performance
The Bosch PLE-1MA030 stands out with its tabletop form factor, fitting seamlessly into any setup. It supports four channels and offers a comprehensive frequency response from 50 Hz to 20 kHz +1/-3 dB at rated power, ensuring high-quality sound reproduction across a broad audio spectrum. With less than 1% distortion at rated power, this amplifier guarantees crystal-clear sound for all your PA needs.
Power Efficient
Designed for efficiency, the amplifier operates on 230 VAC, 50/60 Hz, with a modest power consumption of 100 VA and a current consumption of 4.5 A. This makes the PLE-1MA030 powerful and economical to run, ideal for installations where the amplifier will be in use for extended periods.
Easy Installation and Use
Coming in a package that weighs 17.05 lb with dimensions of 22.6 x 14.2 x 9 inches, this amplifier is as sturdy as it is functional. It promises an easy installation process, fitting effortlessly into your existing audio setup, and its durable construction ensures it can withstand the rigors of daily use.
The Bosch PLE-1MA030 Plena Mixer Amplifier is the cost-effective, ideal solution for enhancing audio communications in a variety of settings. Its blend of functionality, ease of use, and performance make it a valuable addition to any commercial space looking to improve its audio system. Whether for announcements, background music, or paging applications, this amplifier delivers reliable, high-quality sound that meets the demands of professional audio installations.
SKU: #0035 -
Pro Audio, Power Amplifiers
Bosch PLE-2MA120-EU – Priority mixer amplifier, 2-zone, 120W
Introducing the Bosch PLE-2MA120 Plena Mixer Amplifier, a sophisticated solution designed for versatile 2-zone operations and high-output power needs in background audio PA and commercial audio installations. With its robust 120 watts of power, this amplifier is engineered to deliver crisp, clear sound across various settings, including retail stores, commercial offices, and halls.
Key Features:
- Versatile Zone Operations: Equipped with two zones, each featuring Euro-style pluggable screw terminal connectors for 70V, 25V, and 4 Ohms taps, allowing for flexible speaker configurations.
- Comprehensive Input Options: The PLE-2MA120 offers six microphone/line inputs alongside three music source inputs, ensuring compatibility with a wide range of audio sources. It also includes a 100V telephone and a call station input with priority & VOX for seamless integration into existing PA systems.
- Enhanced Voice Clarity: With a dedicated announcement channel, voice-activated emergency override, and built-in 2-tone chime (expandable to 7 more with an optional call station), this amplifier ensures clear communication in critical situations.
- Superior Sound Quality: The frequency response ranges from 50 Hz to 20 kHz, providing a broad spectrum for audio playback. It also boasts a dynamic range of 100 dB and low distortion levels (< 1% at rated power), ensuring high-quality sound reproduction.
- Advanced Signal Processing: Includes separate tone controls for microphones and music sources, bass and treble adjustability of ±12 dB, and a high-pass filter set at 315 Hz, offering precise sound customization.
- Reliable Power Supply: The unit can operate on AC (115 to 230 VAC) and DC (24 VDC) power sources, with a built-in 24V charger for backup power, ensuring uninterrupted operation.
- User-Friendly Interface: Designed for ease of use, the PLE-2MA120 features straightforward controls, making it accessible for all skill levels.
- Durable and Practical Design: With dimensions of 16.9 x 3.9 x 10.6 inches and weighing 23.1 lb, this amplifier is built for durability without compromising on practicality. The unit’s design ensures it integrates seamlessly into a variety of settings.
The Bosch PLE-2MA120 Plena Mixer Amplifier stands out as a cost-effective, ideal solution for enhancing audio systems in commercial environments. Its powerful performance, flexible connectivity, and user-friendly features make it a top choice for professionals seeking reliability and quality in audio installations.
SKU: #0033 -
Pro Audio, Loudspeakers
LC2-PC30G6-8 – Ceiling loudspeaker, 30W, 8″ Pair
The LC2-PC30G6-8 Ceiling loudspeaker is a 8‑inch two‑way Premium‑sound Ceiling Loudspeaker which provides; wide dispersion, high efficiency, high maximum output, ease‑of‑installation, and wide‑range reproduction of music and voice.
Key Features
- 8‑inch coaxial two‑way
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839‑8 and EN 60849 compliant
It consists of a baffle assembly, grille, back‑can enclosure, 8‑inch coax two‑way loudspeaker and internal output‑power matching transformer. The loudspeaker features a waveguide coupled with a titanium coated dome tweeter.
The rear enclosure provides an optimum internal volume for extended low frequency performance. The loudspeaker utilizes a second order crossover network at 3.3 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
The LC2-PC30G6-8 Ceiling loudspeaker can be installed optionally with the LC2‑PC60G6‑10 ceiling subwoofer to enhance the low frequency reproduction down to 45 Hz.
Mounting
The LC2-PC30G6-8 Ceiling loudspeaker is secured in ceilings using four integral toggle anchors, and has been designed to work together in a wide range of different ceiling constructions.
A tile bridge / C‑ring is included for safe suspension in a drop ceiling that uses mineral wool, or other fiber‑based ceiling tiles from 4 to 25 mm (0.16 to 1.0 in.) thick. A circular template for marking a 272 mm (10.75 in.) diameter hole is included with the loudspeaker.
Check out LC2 Ceiling loudspeaker Price.
Power setting
The LC2 Ceiling loudspeaker Pair has a three‑way emergency compliant ceramic terminal block with screw connections (including earth) suitable for loop‑through wiring.
Four 100 V, and five 70 V, primary taps are provided on the matching transformer to allow selection of nominal full‑power, half‑power, quarter‑power, eighth‑power radiation (in 3 dB steps) and eight ohm. Selection is done via a convenient switch on the front baffle.
Buy LC2 Ceiling loudspeaker, 30W from OmniSignals now!
SKU: #0015
