| Color | White; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 175 x 175 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 55 x 55 ° |
| Frequency range (-10 dB) (Hz) | 80 – 18000 Hz |
| Operating relative humidity, non-condensing (%) | 0 – 95 % |
| Operating temperature (°C) | -25 – 55 °C |
| Rated input voltage (V) | 100 V |
| Rated power (W) | 6 W |
| Storage temperature (°C) | -40 – 70 °C |
Related products
- Pro Audio, Loudspeakers
Bosch LBC 3484/00 Horn Loudspeaker, 50W
The Bosch LBC Horn Loudspeaker 50W is a circular loudspeaker with a 50 W horn that has a diameter of 490 mm (19.6 in). It is constructed of aluminum. For protection against impact damage, a PVC profile covers the horn’s edges. It is dust and water resistant and light gray (RAL 7035).
Key Features
- High efficiency driver
- Excellent speech reproduction
- Provision for inside mounting of the optional line/loudspeaker supervision board
- Water-and dust protected to IP 65
- BS 5839‑8 and EN 60849 compliant
Easy Power Configuration
A three-way terminal block with a screw connection (including earth) is included on the horn. The matching transformer has three primary taps that allow you to pick nominal full-power, half-power, or quarter-power radiation (in steps of three dB).
We offer all Bosch LBC Horn Loudspeaker parts.
Mounting
Accurate direction of the sound beam is made possible by the robust adjustable steel mounting brackets that come with the horn loudspeakers.
Buy Bosch LBC Horn Loudspeaker from OmniSignals now!
Functions
Self-extinguishing ABS is used to make the horn’s rear cover (according to class UL 94 V0). The connecting cable exits the back cover through a cable gland (PG 13.5). The back cover has a second hole installed for a loop through connection (covered as usual provided).
These integrated horns may also be installed with any combination of horn and driver because they are available as separate horn and driver. Refer to the order details for the type numbers.
See Bosch LBC Horn Loudspeaker 50W price.
Approvals and certifications
Bosch LBC Horn Loudspeaker 50W is made to meet IEC 268-5 Power Handling Capacity (PHC) regulations, which require them to be able to operate at full power for 100 hours. Bosch has furthermore created the Simulated Acoustical Feedback Exposure (SAFE) test to show that, for brief periods of time, they can tolerate two times the power that is rated for them.
This guarantees increased dependability in harsh environments, resulting in increased customer satisfaction, an extended operational life, and a far lower likelihood of failure or performance degradation.
SKU: #0028 - Pro Audio, Loudspeakers
Bosch LBC 3483/00 Horn Loudspeaker, 35W
High-efficiency Bosch LBC Horn Loudspeaker 35W offers superior sound dispersion and speech reproduction for a variety of outdoor applications. They are perfect for industries, parks, swimming pools, sports fields, and exhibition spaces.
Key Features
- High efficiency driver
- Excellent speech reproduction
- Provision for inside mounting of the optional line/loudspeaker supervision board
- Water-and dust protected to IP 65
- EN 54‑24 certified
- BS 5839‑8 and EN 60849 compliant
loudspeaker for voice alarm
The LBC 3483/00 complies with emergency requirements and is intended for usage in voice alarm systems.In the case of a fire, the built-in protection of the horn loudspeaker prevents the circuit to which it is attached from failing due to loudspeaker damage.
System integrity is preserved in this way, guaranteeing that people can still hear announcements via loudspeakers in other locations. The Horn loudspeaker boasts heat-resistant, high-temperature wire, a ceramic terminal block, and a thermal fuse.
We offer all Bosch LBC Horn Loudspeaker parts.
Functions
Self-extinguishing ABS is used to make the horn’s rear cover (according to class UL 94 V0). The connecting cable exits the back cover through a cable gland (PG 13.5). The back cover has a second hole installed for a loop through connection (covered as usual provided).
These integrated horns may also be installed with any combination of horn and driver because they are available as separate horn and driver. Refer to the order details for the type numbers.
Buy Bosch LBC Horn Loudspeaker from OmniSignals now!
Certifications and approvals
Bosch LBC Horn Loudspeaker 35W is made to meet IEC 268-5 Power Handling Capacity (PHC) regulations, which require them to be able to operate at full power for 100 hours. Bosch has furthermore created the Simulated Acoustical Feedback Exposure (SAFE) test to show that, for brief periods of time, they can tolerate two times the power that is rated for them.
This guarantees increased dependability in harsh environments, resulting in increased customer satisfaction, an extended operational life, and a far lower likelihood of failure or performance degradation.
Check out Bosch LBC Horn Loudspeaker 35W price.
SKU: #0027 - Pro Audio, Loudspeakers
Bosch LA1-UM40E-1 Metal Column Loudspeakers, 40W
The Bosch column loudspeakers 40Watt is a public address system and one of the best column loudspeakers presented by Bosch. The design ensures clear speech and reproduction in both indoor and outdoor environments.
Public spaces including train stations, airports, industries, sports stadiums, and more may employ this paradigm. Long-term installations may be assured of dependability and longevity due to the sturdy construction.
Key Features
- Maximum Power: 40 Watt
- Frequency Response/Range: This loudspeaker is designed to accommodate both speech and music
- Housing: Metal construction suitable for various environments
- Mounting: Adjustable mounting brackets for easy installation
- Impedance: Different impedance settings to match various amplifier outputs
- Integration: Easy to integrate with existed PA systems
Sound Quality
Frequency Response: Usually made to reproduce high-quality music and allow for understandable speaking. Typically, the precise frequency range would be in the few hundreds of Hz to several kHz range.
Acoustic Design: Multiple drivers placed vertically are a common characteristic of column loudspeakers such as the LA1-UM40E-1. This arrangement helps to achieve a more regulated vertical sound dispersion while covering a broad horizontal area. This design improves speech intelligibility in reverberant spaces by reducing sound reflections from floors and ceilings.
Buy Bosch Column Loudspeakers 40Watt from our store now!
Construction and Sturdiness
- Material: The sturdy and long-lasting housing is made of metal.
- Finish: To survive different climatic conditions, it is often equipped with a weather-resistant finish.
- Protection certification: Usually has an IP (Ingress Protection) certification that designates it as suitable for usage outside. For instance, resistance to dust and water splashes might be indicated by an IP54 rating or above.
See our column speaker 40Watt prices.
It is possible to provide even coverage in a large indoor area, such as an airport terminal, by strategically placing many Bosch column loudspeakers 40watt. Their targeted sound dispersal makes announcements more understandable and clear even in loud, echoing spaces. The waterproof structure guarantees dependable operation in a range of weather situations for outdoor applications.
SKU: #0024 - Pro Audio, Loudspeakers

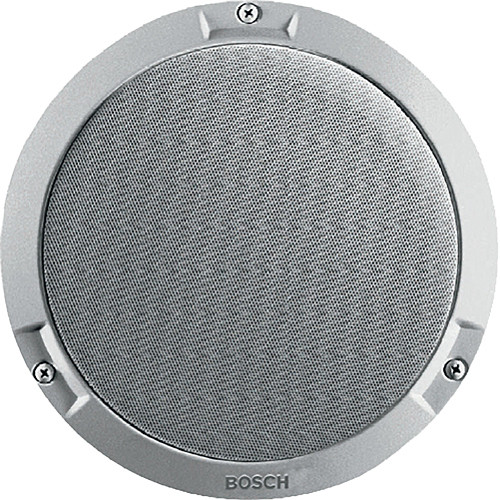

LBC3099/41 – Ceiling loudspeaker, 24W, 8″
A flush-mounting ceiling loudspeaker for situations requiring more power, including high-ceilinged rooms, is the LBC3099/41 Ceiling loudspeaker. It provides a broad frequency range and a high sound pressure level to guarantee clear conversation and high-quality music reproduction. Applications for it include retail establishments, department stores, restaurants, hotels, offices, sports arenas, and schools.
The LBC 3099/41 has a single-piece, 24 W, dual-cone loudspeaker. A 100 V matching transformer is mounted on the back of the frame. An attractive metal grille is integrated with the front, and finished in an unobtrusive white color (RAL 9010).
Ceiling loudspeaker, 24 W, integrated circular metal grille, two spring-loaded clamps for ceiling mounting, three-way screw terminal block, white RAL 9010.
Key Features
- Outstanding audio and speech reproduction
- Elevated amount of sound pressure
- Perfect for situations with high ceilings
- Ceiling-mounted flush fixtures
- Mounting clamps
- Basic power configuration
- The inconspicuous white metal grille
- Ball-proof
- Conforms to international safety and installation standards
- BS 5839-8 and EN 60849 compliant
speaker for voice alarms
Speakers intended for voice alarms are particularly made to be used in buildings where rules control how well verbal evacuation alert systems operate. According to emergency standards, the LBC3099/41 Ceiling loudspeaker is compatible and meant to be used in voice alarm systems.
Check out LBC Ceiling loudspeaker Price.
Terminal Block
The device includes a three-way terminal block that may be wired loop-through since it contains screw connectors for all connections, including earth. The corresponding transformer has three primary taps that allow the user to pick nominal full-power, half-power, or quarter-power radiation (in steps of three dB).
Take a look on our LBC Ceiling loudspeaker 24W.
LBC 3082/00 Fire Dome
LBC3099/41 Ceiling loudspeaker with LBC 3082/00 fire dome assembly. The unit has two built-in spring-loaded locking clamps to secure it into a hole in suspended ceilings and wallboards from 9 to 25 mm (0.35 to 1.0 in) thick. A circular template for marking a 210 mm (8.3 in) diameter hole is included with the loudspeaker.
SKU: #0013
